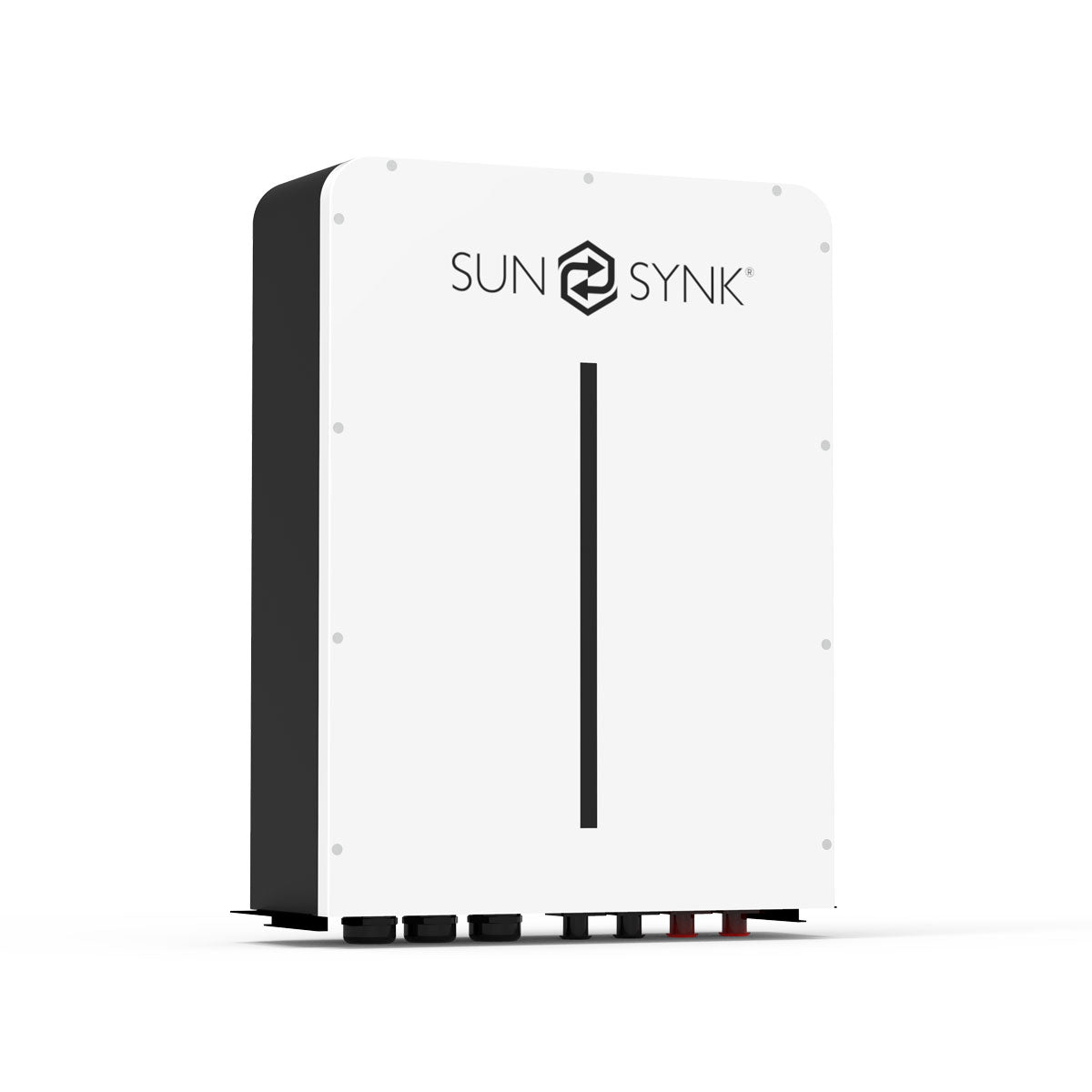

Sunsynk Battery LFP Wall Mount 5.12kWh 51.2V IP65
Sunsynk Battery LFP Wall Mount 5.12kWh 51.2V IP65
Low stock: 10 left
Couldn't load pickup availability
Product Description:
Introducing Sunsynk's energy storage module well designed for residential UPS and off-grid applications. Cells produced by BYD, a global leader in lithium-ion battery development and manufacturing.
The Sunsynk Battery Wall Mount 5.1kWh 51.2V is made up of Lithium Ion phosphate rechargeable batteries rated at 51.2V with 5.1kWh capacity. In addition, the unit has a built-in battery management system to ensure optimal performance at all times.
WARNING: These batteries contain BYD cells, not to be mistaken for the Sunsynk batteries which contain CATL cells. These batteries are almost identical apart from the difference in cell type, but this means you cannot mix BYD and CATL batteries in the same system.
CONVENIENT: Quick installation, wall mounted and standard of 19-inch embedded designed module is comfortable and maintenance. FLEXIBLE CONFIGURATION: Multiple battery modules can be in parallel for expanding capacity and power. Support remote upgrade (Compatible with Sunsynk Inverter). SAFE & RELIABLE Cathode material is made from LiFePO4 with safety performance and long cycle life. The module has less self-discharge, up to 6 months with0uth charging it on shelf, no memory effect, excellent performance of shallow charge and discharge. INTELLEGENT BMS: It has protection functions including over-discharge, over-charge, over-current and over-high or low temperature. The system can automatically manage charge and discharge state and balance current and voltage of each cell. ECO FRIENDLY: The whole module is non-toxic, on-polluting and environmentally friendly. WIDE TEMPERATURE: Working temperature range is from -20°C to 55°C, with excellent discharge performance and cycle life.
Technical Specifications
Main Parameters
|
Battery Chemistry |
LiFePO4 |
|
Capacity (Ah) |
100 |
|
Scalability |
Max.32 pcs in parallel (163.8kWh) |
|
Nominal Voltage |
51.2 |
|
Operating Voltage |
43.2~57.6 |
|
Energy (kWh) |
5.12 |
|
Usable Energy (kWh)[1] |
4.61 |
|
Charge/Discharge Current (A) - Recommended [2] Max[2] peak (2 mins, 25°C) |
50 100 150 |
|
Max Charge/Discharge Power |
5000W |
|
Short Circuit Current |
350A |
Other Parameters
|
Recommended Depth of Discharge |
90% |
|
Dimensions |
440 x 640 x 140 |
| Weight Approximate (kg) | 50 |
| Master of LED Indicator |
5 LED (SOC 20%~100%) 3 LED (working, alarming, protecting) |
| IP Rating of Enclosure | IP65 |
| Working Temperature |
Charge: 0°C~55°C Discharge: -20°C~55°C |
| Humidity | 5%~95% |
| Altitude | ≤2000m |
| Cycle Life | ≥6000 (25±2°C,0.5C/0.5C,70%EOL) |
| Installation | Wall Mounted or 19-inch standard cabinet |
| Communication Port | CAN2.0, RS485 |
| Warranty Period | 5 years |
| Life Cycle Power During Warranty Period | 16MWh@70%EOL |
Important:
All solar products, power systems, water heating and gas products and their components must be installed by appropriately qualified personnel. All installations must adhere to local wiring regulations and standards. Power Butler will not be held liable for any product malfunctions as a result of incorrectly installed systems.
