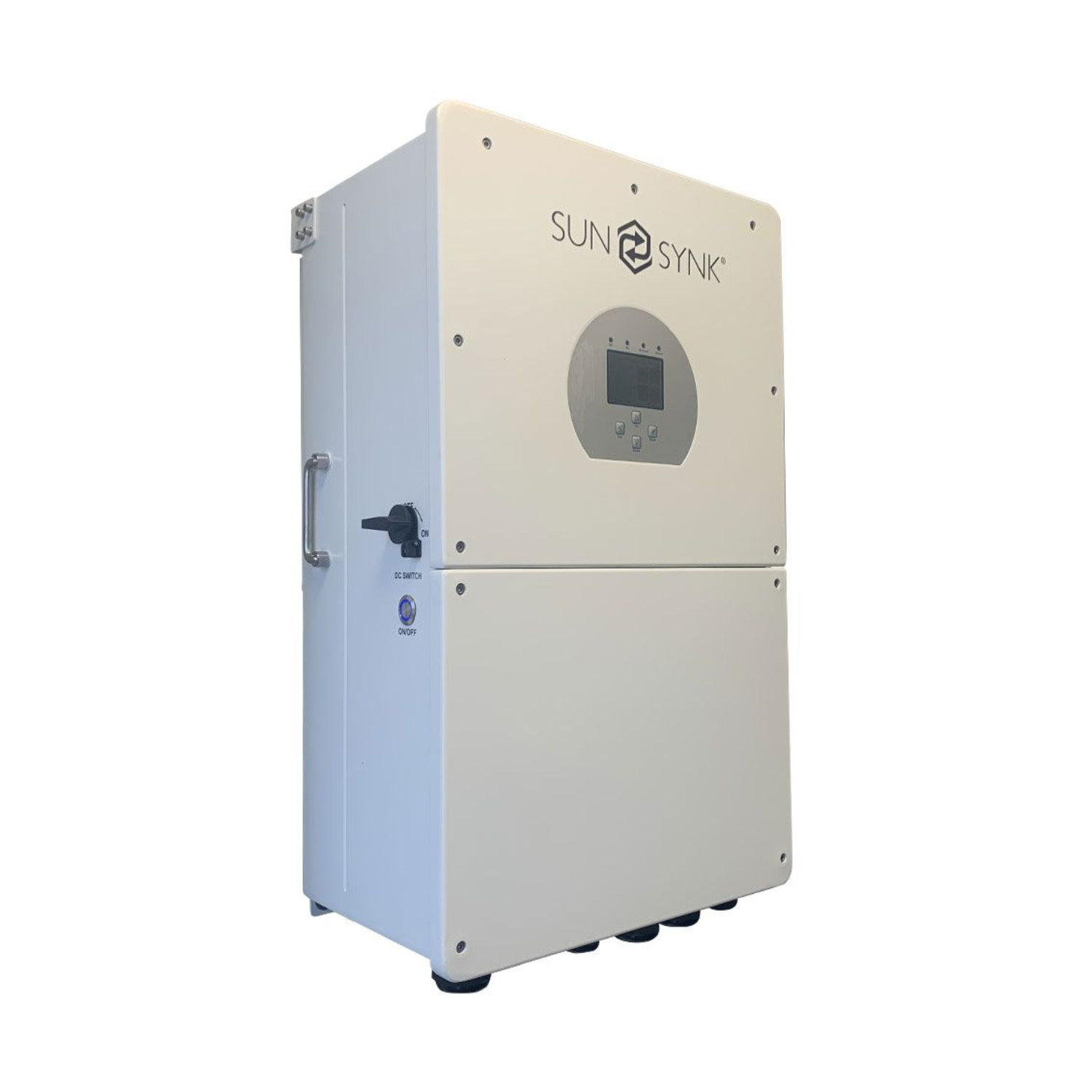

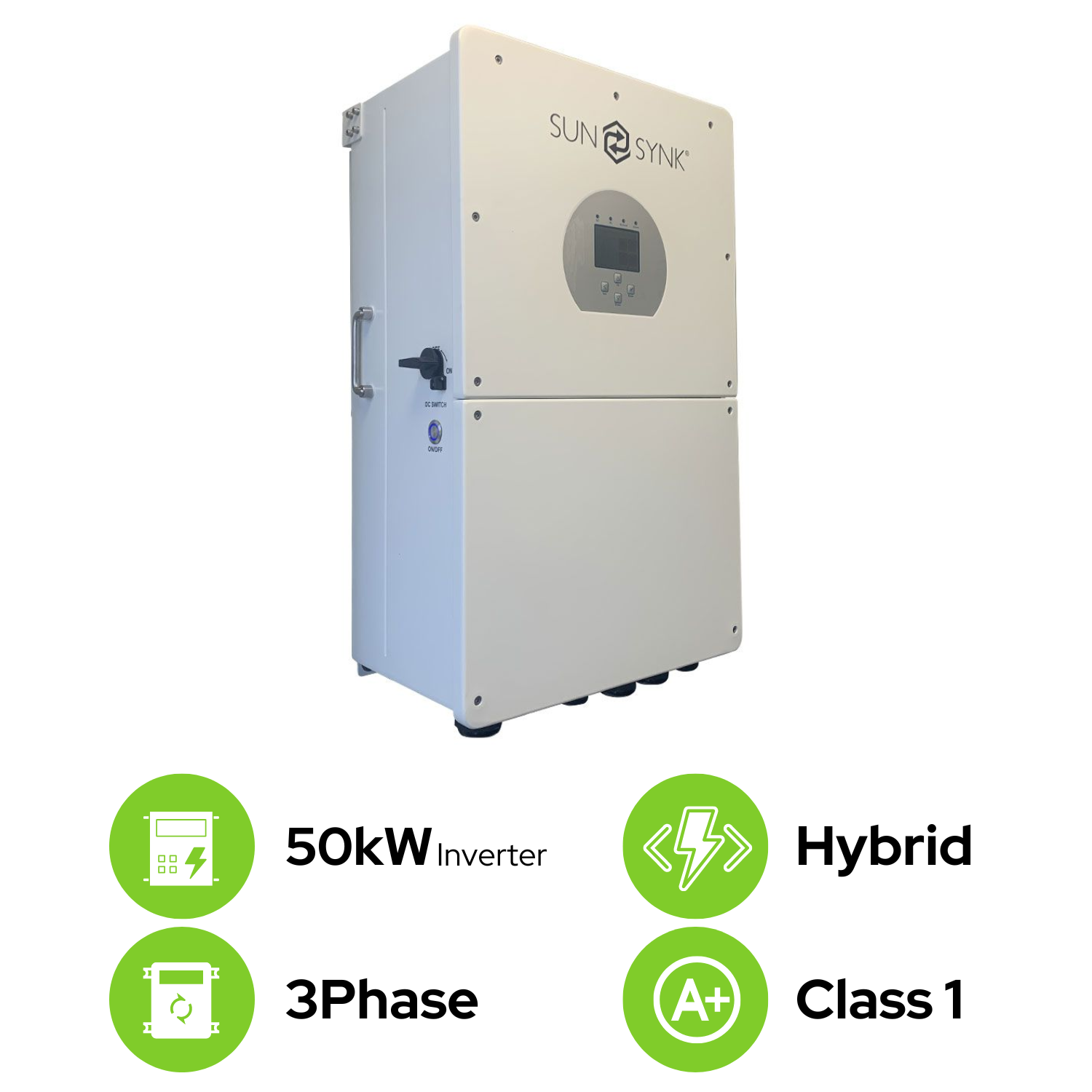

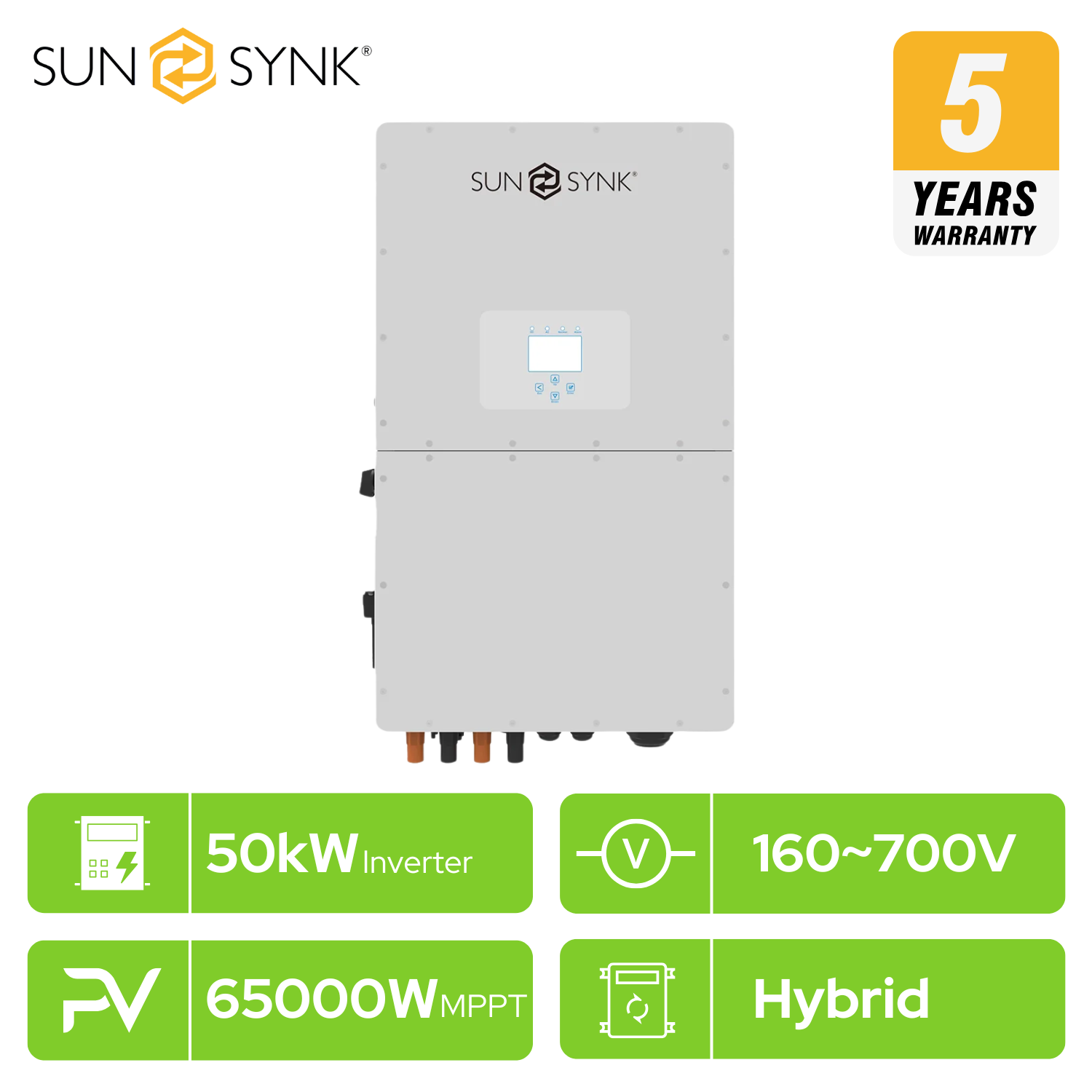

Sunsynk 50kW HV 3P Hybrid Inverter

SUNSYNK HYBRID INVERTER

• RATED POWER: 50kW
• MIN PPT VOLTAGE: 150V
• MAX PPT VOLTAGE: 850V
• MAX INPUT VOLTAGE: 1000V
• MAX DC POWER: 65 000W
• MAX AC POWER: 55 000W
• SURGE AC POWER: 75 000W
• MAX DC CURRENT: 144A
• MAX DC INPUTS: 8
• MPPT QUANTITY: 4
• CONNECTORS: MC4
• EFFICIENCY: 99.9%
• WEIGHT: 75KG

Product Features

• The Sunsynk 50kW three phase high voltage hybrid Inverter is the ideal commercial inverter for managing power flow from multiple sources such as solar, main electrical grid and generator.
• Four MPPT trackers giving allowance to flexible PV array configurations.
• Allows DC oversizing up to 30% more than the rated AC power.
• Unit can be operated without batteries (using PV and grid power).
• Supports Wi-Fi remote monitoring as standard.
• Type II DC/AC SPD as standard.
• Overload, Over Temperature and Short Circuit Protection as standard.
• Up to 5 x 50kW inverters can be connected in a parallel configuration, with each inverter having its own batteries connected to it.
