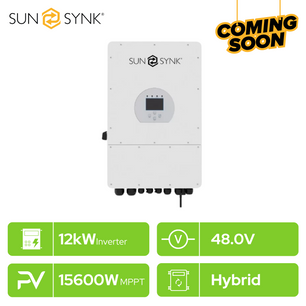

Sunsynk 12kW 1P Hybrid PV Inverter 48v C/W Wifi Dongle IP65

Model SUNSYNK-10K-SG02LP1 SUNSYNK-12K-SG02LP1

Battery Input Data
Battery Type Lead-acid or Lithium-ion
Battery Voltage Range 40~60V
Max. Charge Current 220A 250A
Max. Discharge Current 220A 250A
External Temperature Sensor Yes
Charging Curve 3 Stages / Equalization
Charging Strategy for Li-Ion Battery Self-Adaptation to BMS
PV String Input Data
Max. DC Input Power 13000W 15600W
Rated PV Input Voltage 370V (125~500V)
Start-up Voltage 125V
MPPT Voltage Range 150V-425V
Full Load DC Voltage Range 200V-425V
PV Input Current 26A+26A+26A
Max. PV Isc 44A+44A+44A
No. of MPPT / Strings Per MPPT 3 / 2+2+2
AC Output Data
Rated AC Output Active Power 10000 12000
Max AC Output Active Power 11000 13200
AC Output Rated Current 45.5/43.5A 54.6/52.2A
Max. AC Output Current 50/47.9A 60/57.4A
Max. Continuous AC Passthrough 70A
Peak Power (Off Grid) 2 Time of Rated Power, 10 S
Power Factor Adjustment Range 0.8 Leading to 0.8 Lagging
Power Factor 1
Output Frequency and Voltage 50 / 60Hz; L/N/PE 220/230Vac
Grid Type Split Phase; 2/3 phase; Single Phase
Total Harmonics Current Distortion (THDi) <3% (of nominal power)
DC Current Injection <0.5% In
Efficiency
Max. Efficiency 97.60%
Euro Efficiency 97.00%
MPPT Efficiency 99.90%
Protection
Integrated
Anti-islanding Protection, PV String Input Reverse Polarity Protection, Insulation
Resistor Detection, Residual Current Monitoring Unit, Output Over Current
Protection, Output Shorted Protection, Surge Protection
Over Voltage Category DC Type II/AC Type III
Certifications and Standards
Grid Regulation VDE4105, IEC61727/62116, VDE0126, AS4777.2, CEI 0 21, EN50549-1, G98, G99,
C10-11, UNE217002, NBR16149/NBR16150
Safety EMC / Standard IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2
General Data
Operating Temperature Range -40~60°C, >45°C Derating
Cooling Smart Cooling
Noise ≤30 dB
Communication with BMS RS485; CAN
Weight 32kg
Size (WxHxD mm) 420W×670H×233D mm (Excluding connectors and brackets)
Protection Degree IP65
Installation Style Wall-mounted
