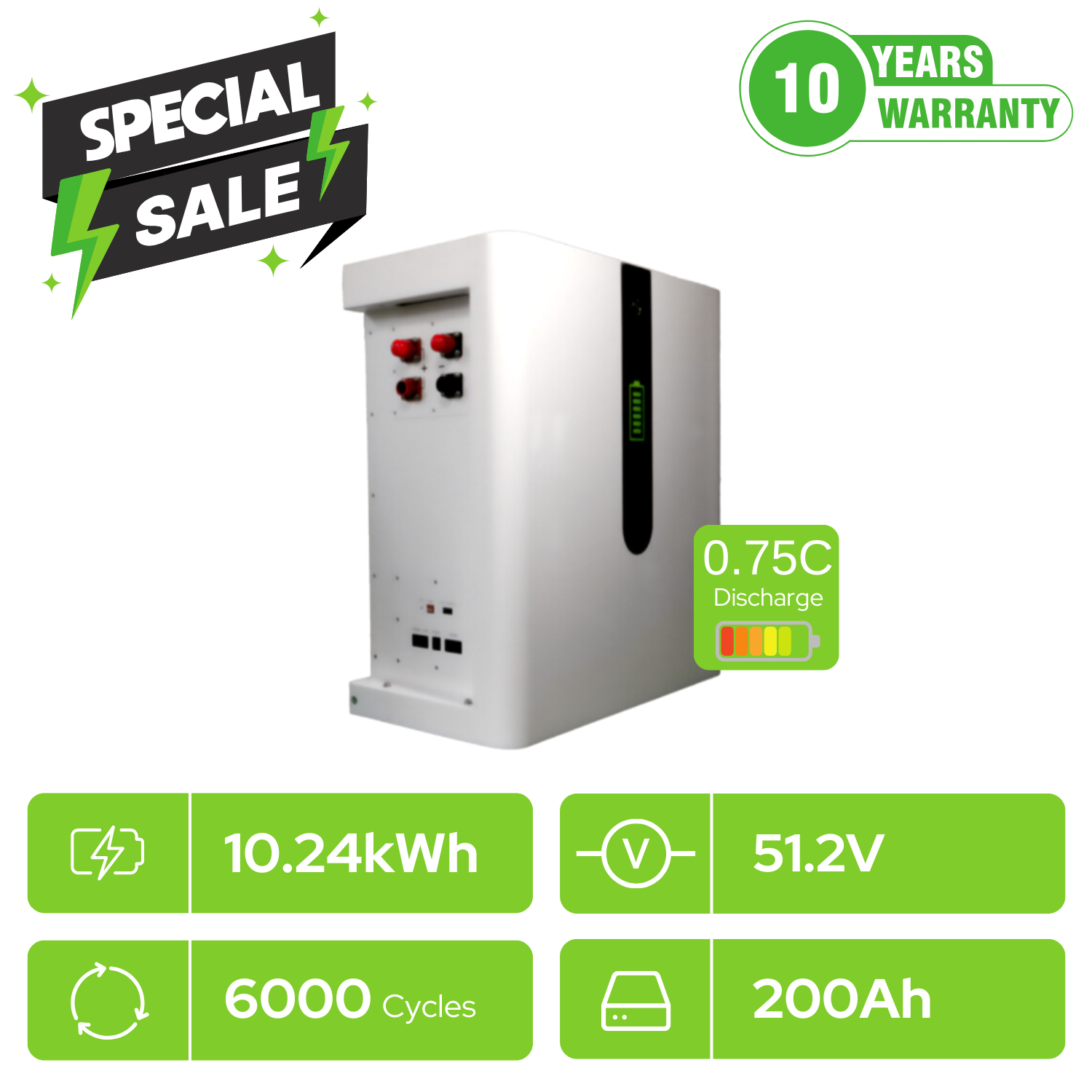

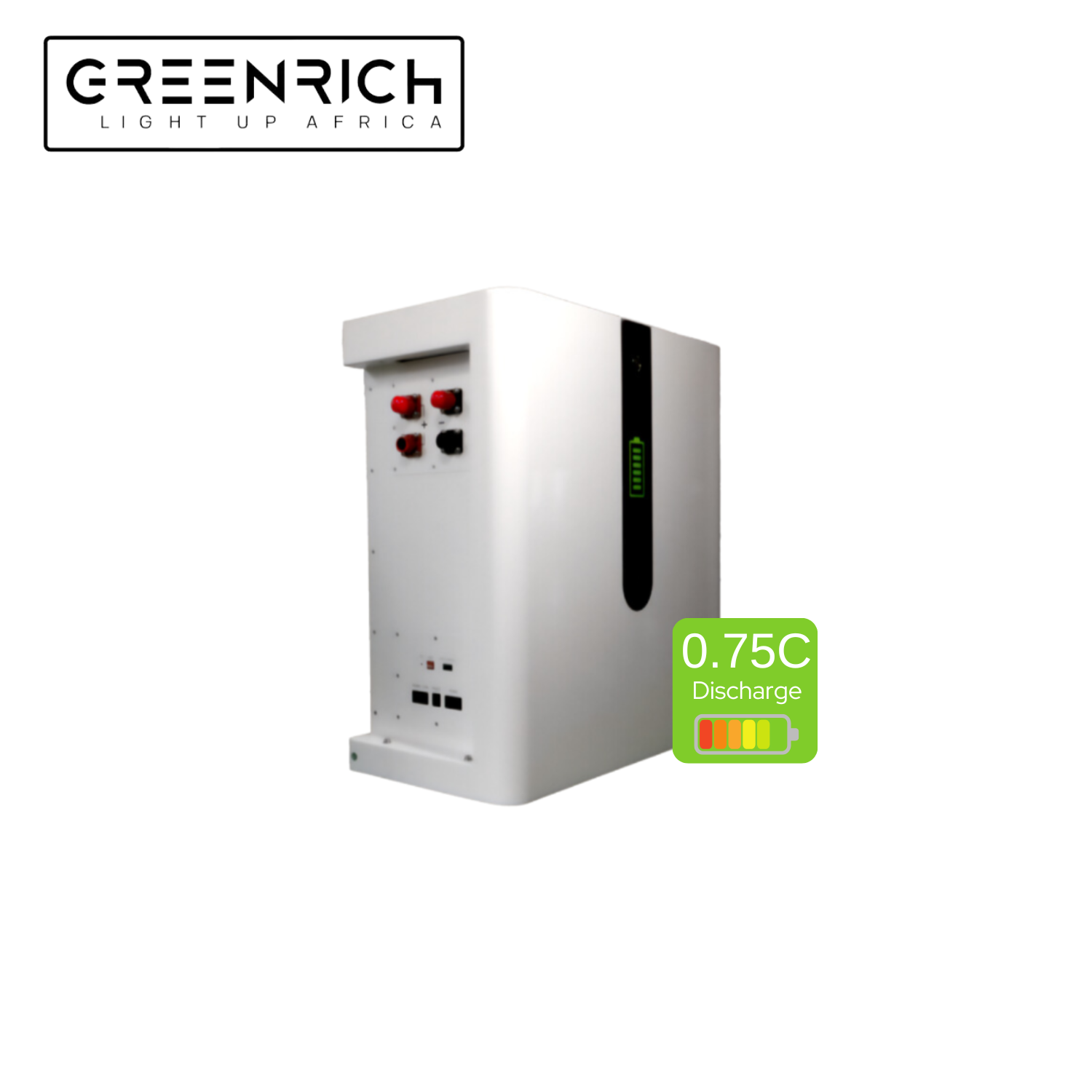

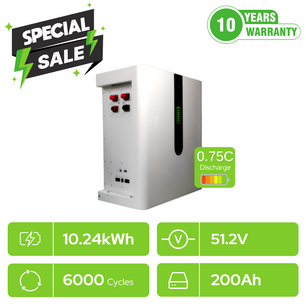

The SSRE 51.2V Series is a high-performance energy storage solution with a 51.2V rated voltage and 9.22 kWh usable capacity. It measures 550x280x610mm and weighs approximately 94kg. The LFP (LiFePO4) battery has a stackable design with optional White and Green colors. With a 10-year calendar life, it supports a constant charging current of 100A (40A recommended) and a maximum charging current of 110A. For discharge, it offers a constant current of 150A (100A recommended) and a maximum discharge current of 160A. The temperature ranges include -20°C to 60°C for discharge, 0°C to 55°C for charge, and -20°C to 45°C for storage. Humidity is within the range of 10% to 85%.
- Rated Voltage: 51.2V
- Usable Capacity: 9.22 kWh
- Dimensions: 550x280x610mm
- Weight: about 94kg
- Battery Type: LFP (LiFePO4)
- System Weight: 94 ±1 kg
- Dimension: 550x280x610 mm (Stackable)
- Optional Color: White, and Green
- Calendar: 10 years (in condition)
- Constant Charging Current: 100A (40A recommended)
- Max. Charging Current: 110A
- Constant Discharge Current: 150A (100A recommended)
- Max. Discharging Current: 160A
- Standard Charge Power: 5000W
- Max. Charge Power: 6500 W
- Standard Discharge Power: 7500 W
- Max. Discharging Power: 9000 W
- Discharge Temperature Range: ‑20°C~ 60°C
- Charge Temperature Range: 0°C ~ 55°C
- Storage Temperature Range: ‑20°C ~ 45°C
- Humidity: 10% ~ 85%
Energy
Capacity: 10.24
kWh
Usable
Capacity: 9.22
kWh
Depth
of
Discharge
(DoD): 90%
Nominal Voltage: 51.2
V
Operating
Voltage
Range: 43.2
V
~
58.4
V
- Modules Inter‑Connection: 1 ~8 parallel
- Monitoring Parameters: System voltage, current, temperature, PCBA temperature
- Communication: RS‑232 / 485 / CAN
